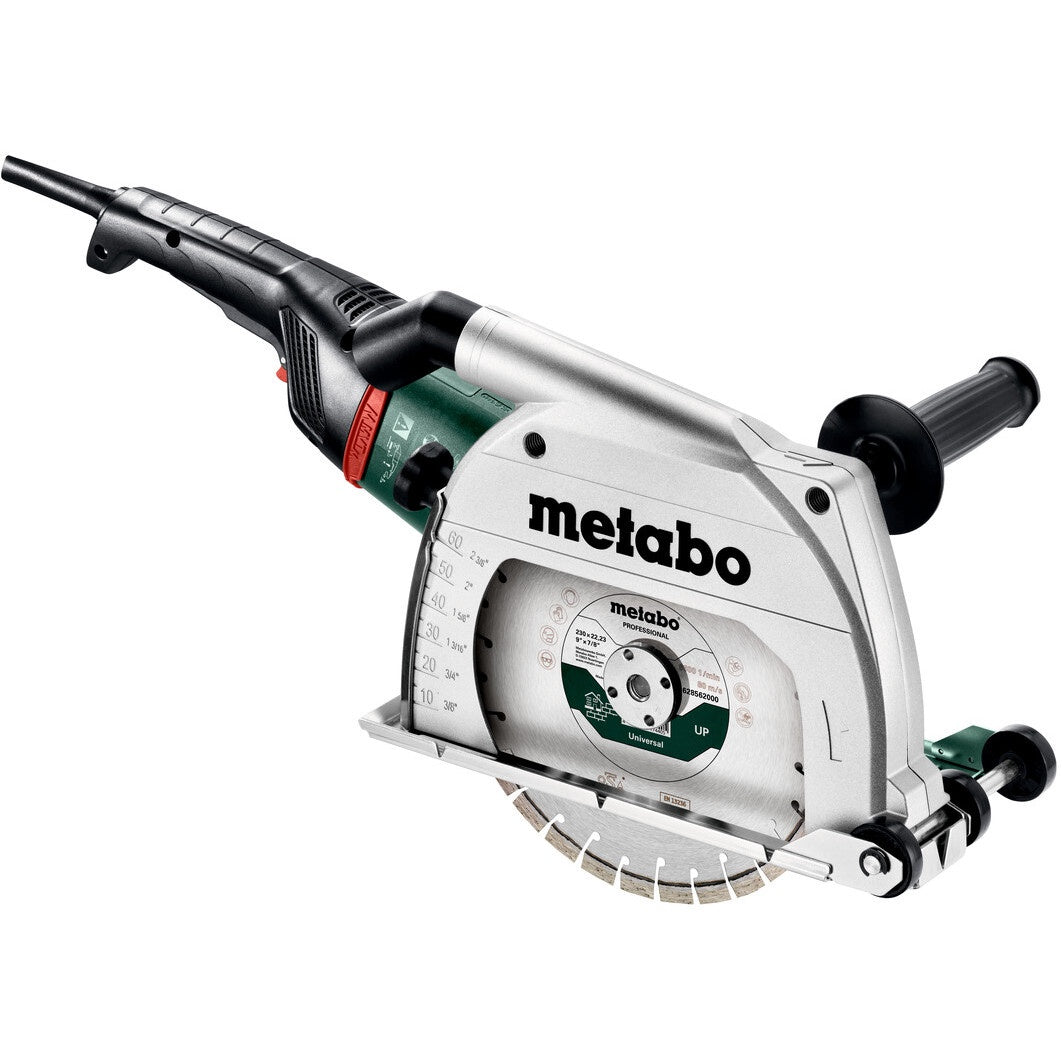

MTO Hand Saw 9" TE 24-230 MVT CED

• Powerful diamond cutter for low-dust dry cuts up to 60 mm in mineral materials
• Best view on the cutting line thanks to the open design of the dust extraction shroud
• Efficient dust extraction for health protection and clean construction sites
• Fast work progress and long service life thanks to powerful Metabo Marathon-motor
• Ideal for precise, horizontal cutting thanks to pushing cut; conversion to pulling cut possible
• Precise cuts on even surfaces thanks to metal base plate with rollers
• Safety and control in any situation: Soft start, Metabo VibraTech (MVT) vibration damping, electronic safety shutdown and restart protection
• Robust die-cast aluminium dust extraction shroud with tool-free setting of the cutting depth
• Auto-stop carbon brushes to protect the motor
• Connection for dust extraction Ø 35/41 mm

• Cutting disc Ø: 230 mm / 9 "
• Max. cutting depth: 60 mm / 2 3/8 "
• Rated input power: 2400 W
• Output power: 1600 W
• No-load speed: 6600 rpm
• Spindle thread: M 14
• Weight (without power cable): 8.1 kg / 17.9 lbs
• Cable length: 4 m / 13 ft

• Vibration: 4.1 m/s²
• Uncertainty of measurement K: 1.5 m/s²

• Sound pressure level: 99 dB(A)
• Sound power level (LwA): 110 dB(A)
• Uncertainty of measurement K: 3 dB(A)
