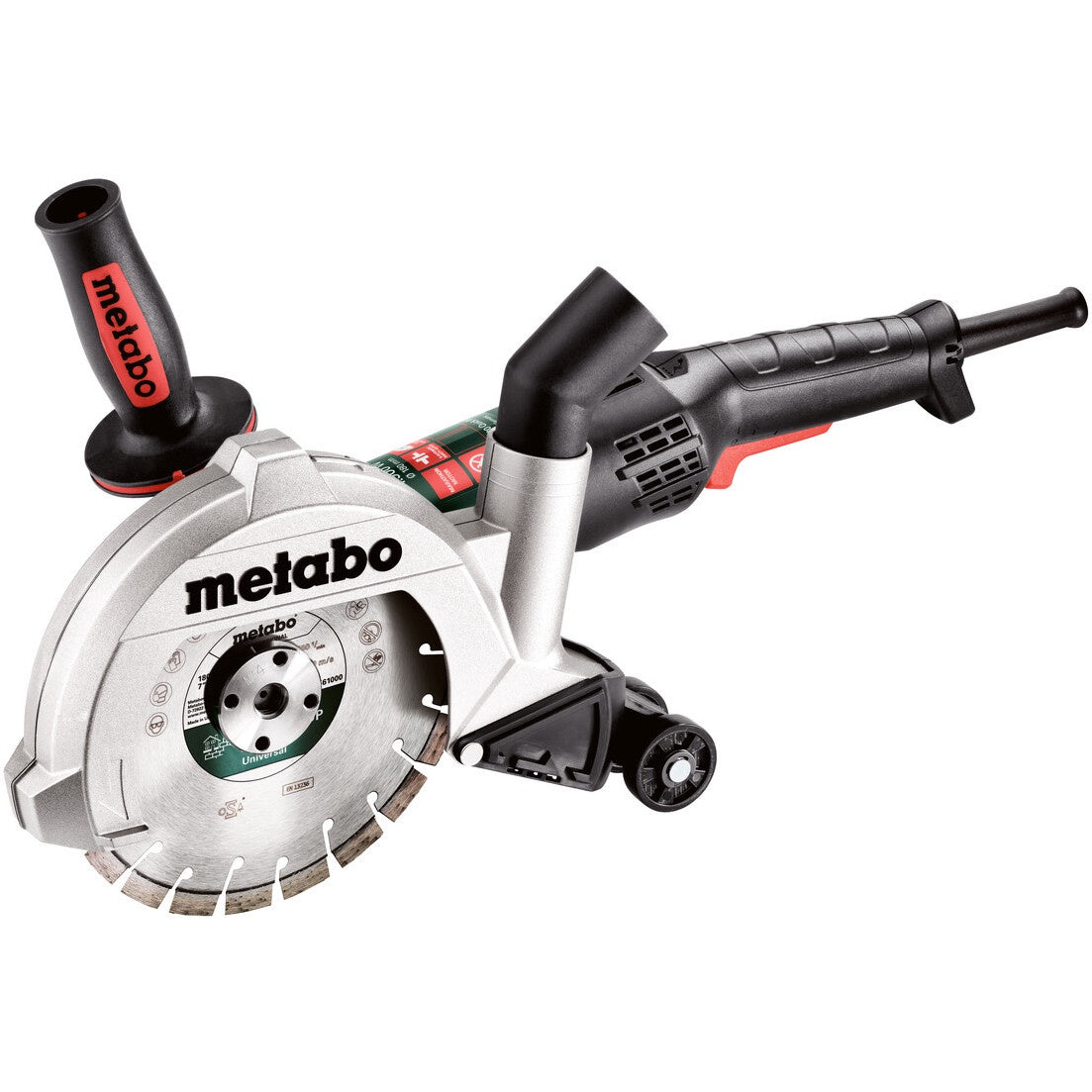

MTO Hand Saw 7" TEPB 19-180 RT CED

• LIght, powerful diamond cutter for low-dust dry cuts up to 55 mm in mineral materials
• High cutting depth like a large angle grinder (Ø 230mm) with only half the weight
• Best view on the cutting line thanks to the open design of the dust extraction shroud
• Efficient dust extraction for health protection and clean construction sites
• Fast work progress thanks to powerful Metabo Marathon-motor and almost constant speeds even under load
• Ideal for cutting of roof tiles and for vertical wall slits thanks to pulling cut; conversion to pushing cut possible
• Maximum control and easy handling thanks to low weight and slim handle area
• Maximum safety in any situation: Soft start, S-automatic safety clutch, deadman switch, fast disc stop and restart protection
• Sturdy die-cast aluminium dust extraction shroud
• Particularly high service life thanks to Metabo Marathon-motor with new cooling and carbon brush system
• Connection for dust extraction Ø 35/41 mm

• Cutting disc Ø: 180 mm / 7 "
• Max. cutting depth: 55 mm / 2 1/8 "
• Rated input power: 1900 W
• Output power: 1140 W
• No-load speed: 7500 rpm
• Spindle thread: M 14
• Weight (without power cable): 3.5 kg / 7.7 lbs
• Cable length 4 m / 13 ft

• Vibration: 5.8 m/s²
• Uncertainty of measurement K: 1.5 m/s²

• Sound pressure level: 94 dB(A)
• Sound power level (LwA): 105 dB(A)
• Uncertainty of measurement K: 3 dB(A)
