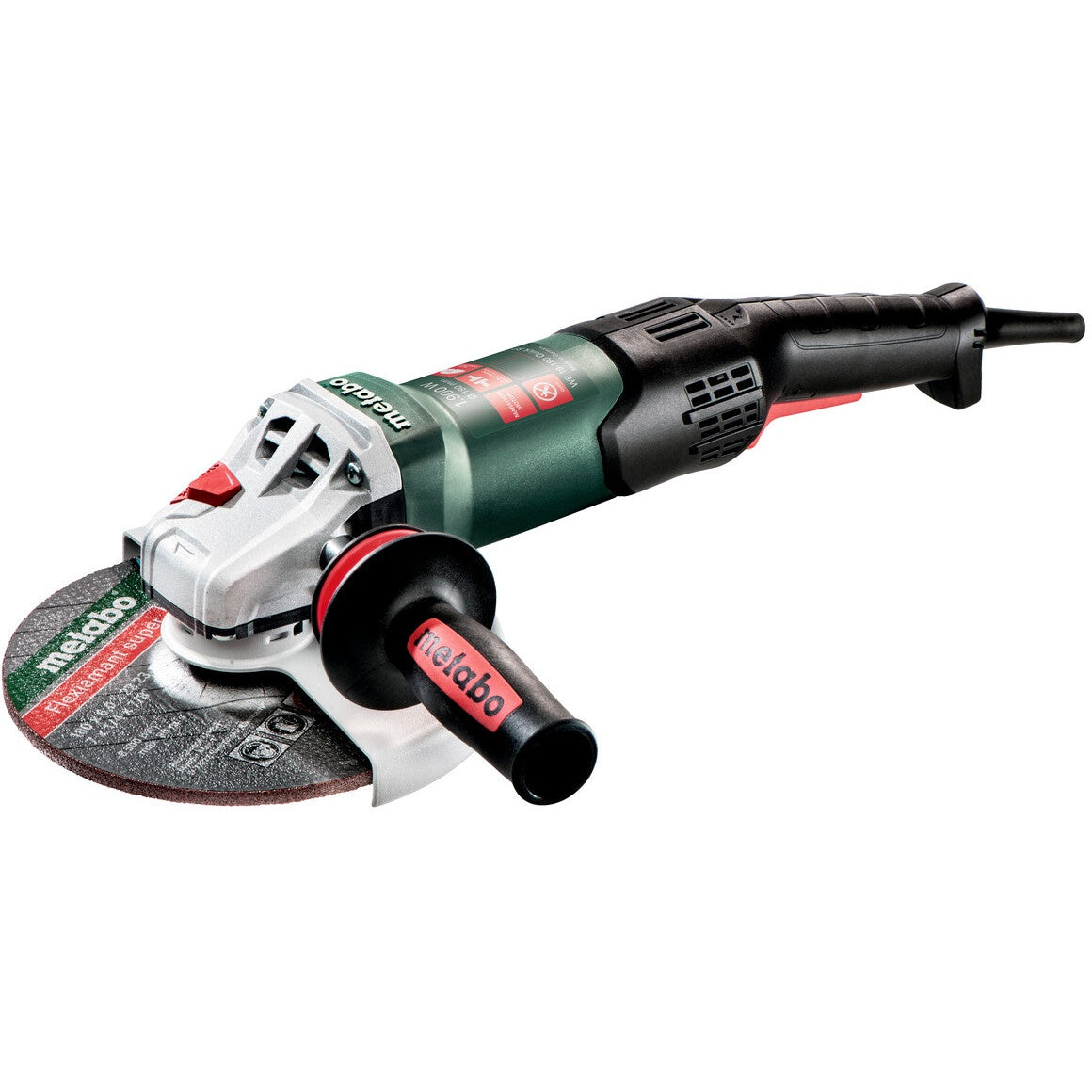

MTO Grinder 5/7" Angle WE 19-180 Q RT

• The most powerful one with full 1,900 Watt for industrial processing of weld seams and a cutting depth like a large angle grinder (Ø 230 mm) with only half the weight
• Perfect ergonomics thanks to slim handle for maximum control and easy working overhead
• Metabo Marathon-motor with new cooling and carbon brush system for twice the service life
• Tacho Constamatic (TC) Full-wave Electronics: fast work progress by means of constant speed under load
• M-Quick System for tool-free disc change at the touch of a button
• Tool-free adjustable guard; twist-proof
• Low-vibration side handle Metabo VibraTech (MVT)
• Metabo S-automatic mechanical safety clutch: minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user safety and swift progress
• Electronic soft start and restart protection
• Gear housing can be unscrewed, rotated in 90° steps and remounted for left-handed operation or cutting
• Auto-stop carbon brushes to protect the motor

• Disc-Ø: 180 mm // 7 "
• Rated input power: 1900 W
• Output power: 1240 W
• No-load speed: 8200 rpm
• Speed at rated load: 8200 rpm
• Torque: 5 Nm / 44 in-lbs
• Spindle thread: M 14
• Handle circumference: 138 mm / 5.438 "
• Weight (without power cable): 2.7 kg / 6 lbs
• Cable length: 4 m / 13 ft

• Surface grinding: 7.7 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Grinding with sandpaper: 2.8 m/s²
• Uncertainty of measurement K: 1.5 m/s²

• Sound pressure level: 94 dB(A)
• Sound power level (LwA): 105 dB(A)
• Uncertainty of measurement K: 3 dB(A)
