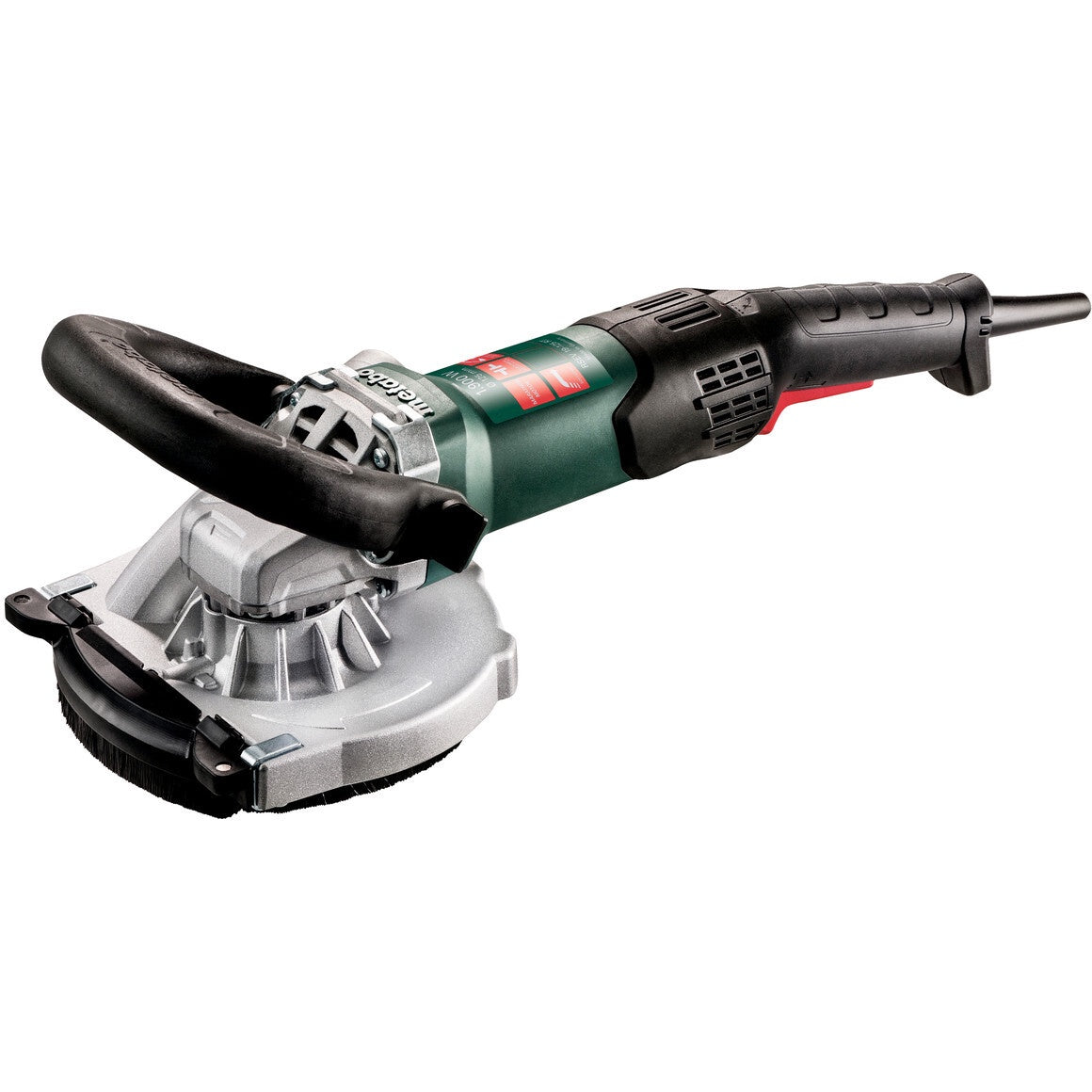

MTO Grinder 5" Renovation RSEV 19-125 RT

• For effective spot grinding and removal of concrete, screed and coatings with diamond cup wheels
• Maximum productivity thanks to 1,900 Watt strong Metabo Marathon-motor with low weight
• High torque and overload capacity for demanding applications in continuous use
• Low weight, ideal for sanding walls and ceilings
• Perfect ergonomics thanks to slim handle for maximum control and easy working overhead
• Working close to edges thanks to integrated folding segment
• Optimum extraction results: spring-mounted brush rim at the protective cover that adapts to any surface and segment height
• Front handle for safe and uniform guidance when polishing, adjustable without tools
• Vario Tacho Constamatic (VTC) Full-wave Electronics with Thumbwheel: for working at customised speeds to suit the application material and speeds that remain almost constant, even under load
• Electronic soft start for smooth start-up
• Restart protection: prevents unintentional start-up after power supply interruption
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly
• Connection for dust extraction Ø 35/41 mm

Characteristics

• Cup wheel Ø: 125 mm / 5 "
• Torque: 5 Nm / 44 in-lbs
• No-load speed: 3800 - 8200 rpm
• Rated input power: 1900 W
• Output power: 1240 W
• Speed at rated load: 6800 rpm
• Spindle thread: M 14
• Weight (without power cable): 3.5 kg / 7.7 lbs
• Cable length: 4 m / 13 ft

Vibration

• Surface grinding: 6.94 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 92 dB(A)
• Sound power level (LwA): 103 dB(A)
• Uncertainty of measurement K: 3 dB(A)
