TYR Core Drill Stand DRU160

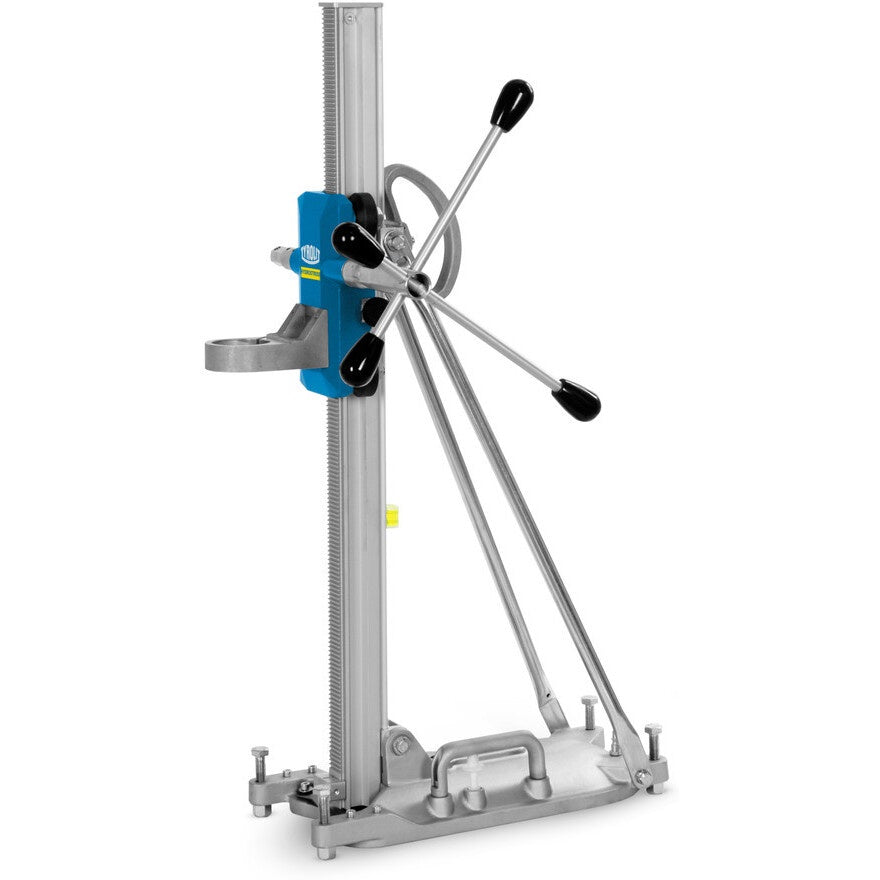

Tyrolit Hydrostress core drill stand, DRU160.

Braced clamping collar drill stand for vertical, horizontal, or diagonal drilling. Stable roller guide for precision drilling. Rapid assembly thanks to standard clamping collar system. Large hand crank for ease of drilling. Integrated levels and indicators. May be anchored traditionally via bolts or using the integrated vacuum base with additional vacuum kit. Diagonal adjustment from 45°-90°. Fits bits up to 560 mm in length and 160 mm in diameter. Ryco style pneumatic fitting.

Max bit diameter: 160 mm
Max bit length: 560 mm
Angle range: 45°-90°
Motor attachment: 60 mm clamping collar
Dimension: 400 x 200 x 866 mm
Weight: 9.0 kg
