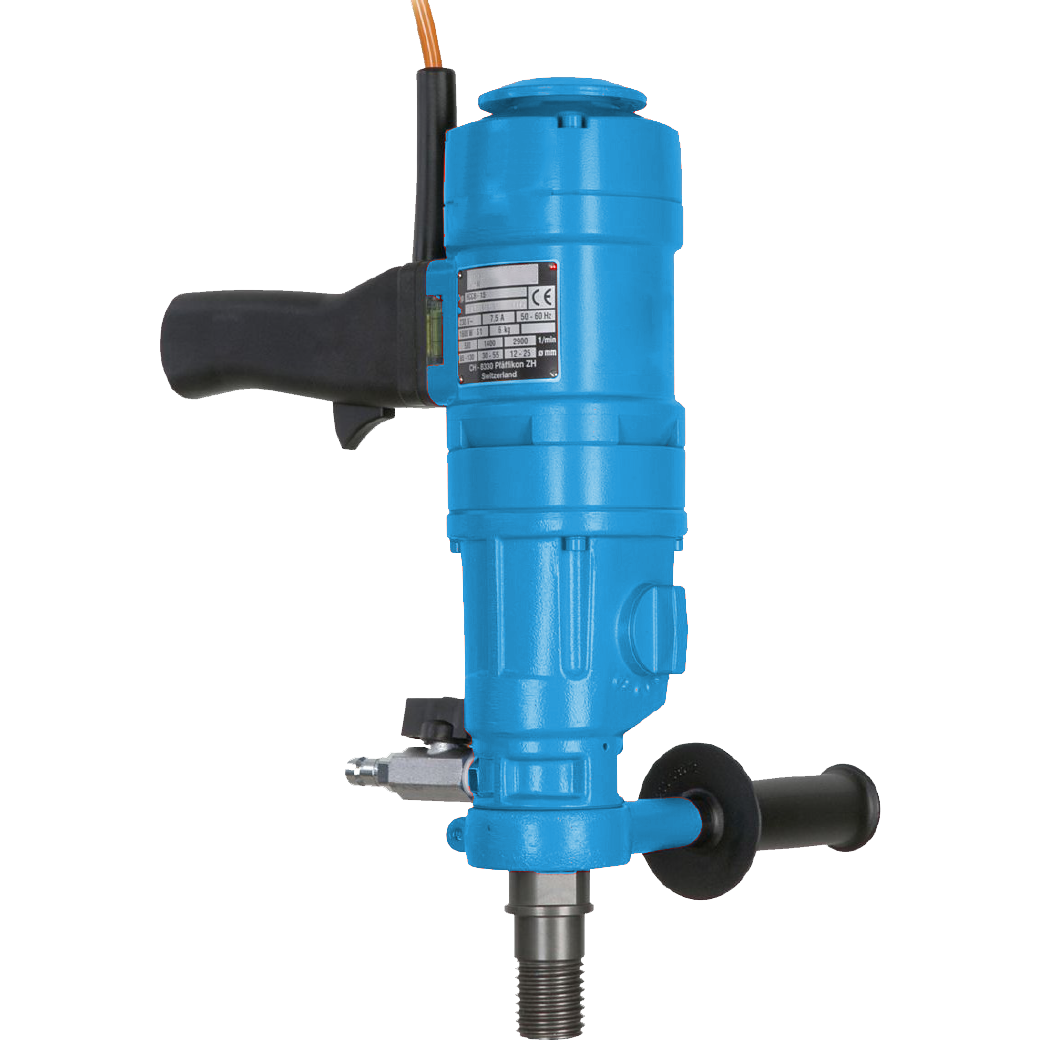

TYR Core Drill Motor DME20PW 3-Speed 2000W

Tyrolit Hydrostress handheld core drill motor, 3-speed, 2000 W.

Handheld or rig operated core drill motor for use both wet and dry. Highly efficient motor. Oil bath gearbox lubrication and overload clutch. Integrated horizontal and vertical levels. Full metal housing. Fits both standard and high-speed bits. Tyrolit Hydrostress branded, manufactured by Weka.

Suitable for DRA150 and DRU160 drill rigs.

Power: 240 V, 10 A
Motor: 2000 W
Load speed: 540 / 1200 / 2520 RPM
Thread: 1-1/4" 7 UNC external, 1/2" BSP internal
Max bit diameter: 160 mm
Rig attachment: 60 mm clamping collar
Length: 350 mm
Weight: 5.9 kg
